pHAT FLIP

2 reviews

90 Degree HAT Adapter

£7.50£10.00

Optional Extras
-
+
£0.75
-
+
£0.50
Solder Yourself Kit (Reversible)
£7.50
Ready To Use (Side A)
£10.00
Ready To Use (Side B)
£10.00
Parts Included
EAN: SKU: N/A Categories: , Tags: ,

Description

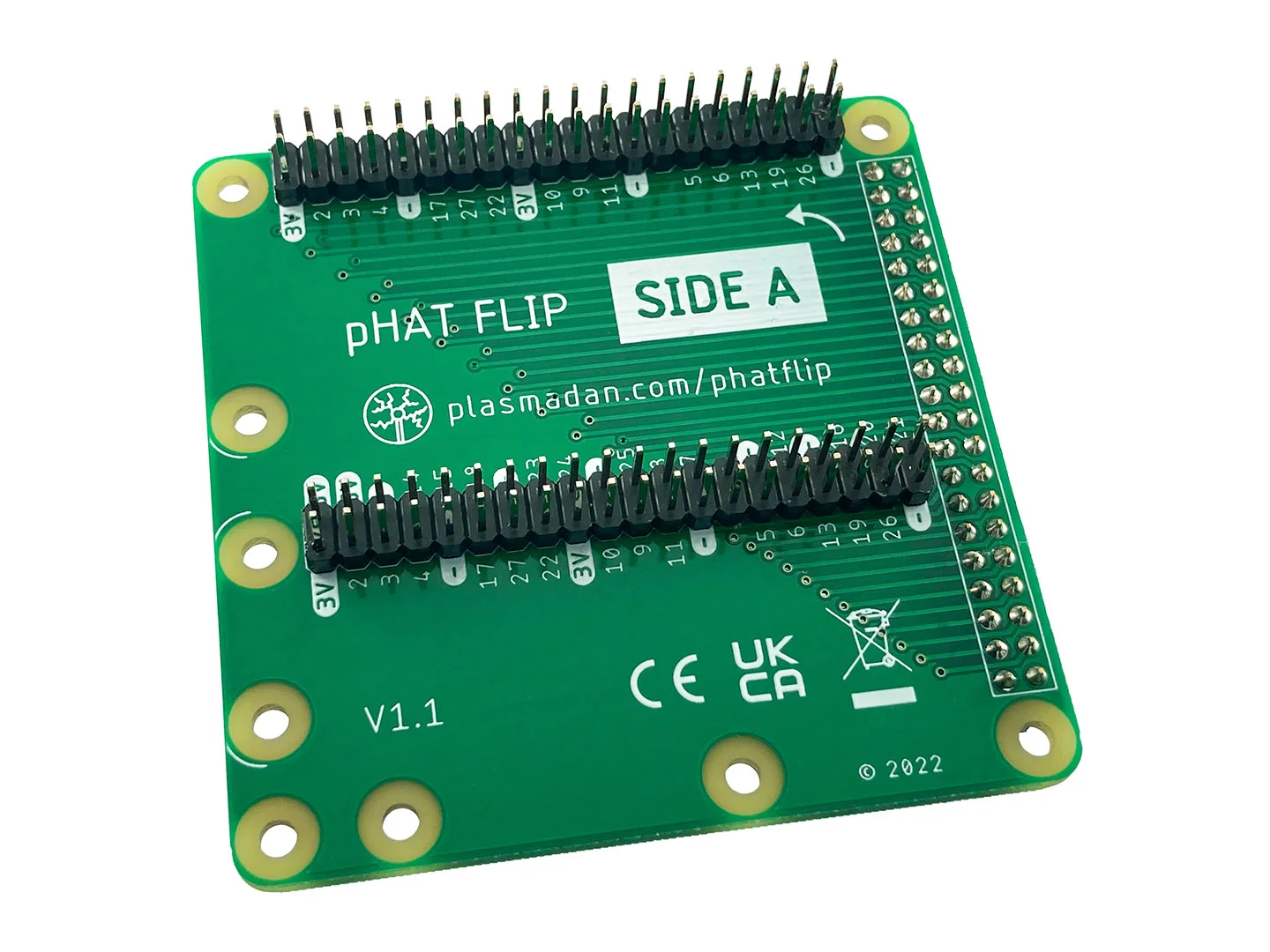

The pHAT FLIP is a Raspberry Pi HAT adapter which can flip 1 HAT or 2 pHATs 90 degrees in either direction. It can be mounted directly on a Raspberry Pi or used in-conjunction with our HAT RACK boards. The reversible board includes BCM pin numbering on both sides for easy identification.

Features

  • Reversible board can rotate left or right
  • Mount 1 HAT or 2 pHATs
  • BCM pin numbering
  • Compatible with our HAT RACK boards

Device Compatibility

The pHAT FLIP is fully compatible with all 40-way Raspberry Pi models and clones.

Device ModelCompatibility
Raspberry Pi 1 Model A+/B/B+✔️
Raspberry Pi 2 Model B✔️
Raspberry Pi 3 Model B/B+✔️
Raspberry Pi 4✔️
Raspberry Pi 5✔️
Raspberry Pi Zero✔️
Raspberry Pi Zero 2✔️
ATMegaZero✔️
Asus Tinker Board✔️
Banana Pi✔️
Odroid✔️
Orange Pi✔️
ROCK Pi✔️

Dimensions

Compliance

  • UL 796 certified manufacturer
  • RoHS compliant (lead free)
  • CE & UKCA compliant (certificates)

Gerber Files

Available for download here.

In The Wild

Additional information

Weight23 g
Dimensions65 × 65 × 19 mm
