DINPi V2

Raspberry Pi DIN Rail Carrier

£9.00£12.00

Optional Extras
-
+
£2.50
-
+
£0.90
£9.00
£12.00
Parts Included

92 in stock

EAN: SKU: N/A Categories: , Tags: ,

Description

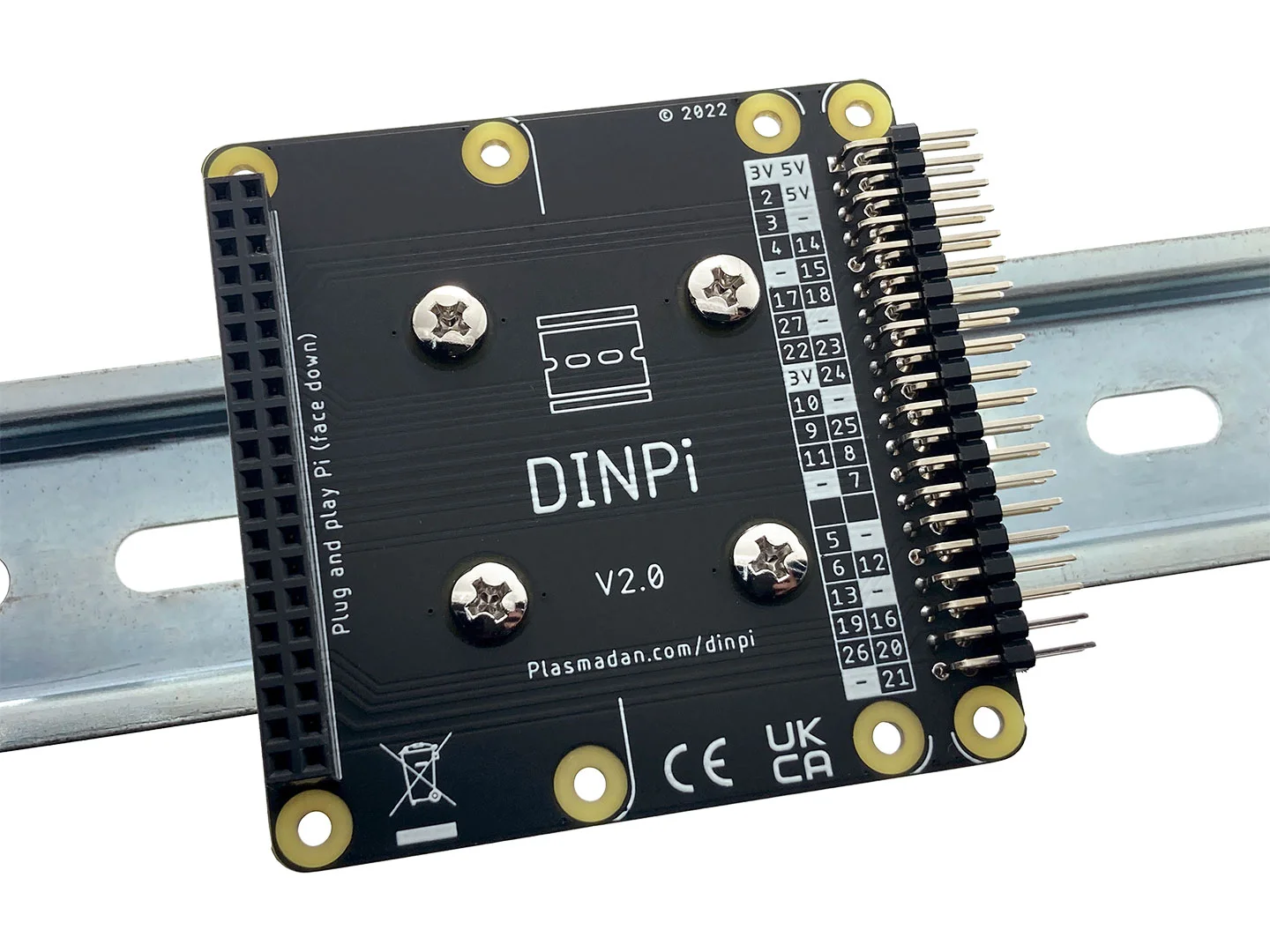

The DINPi V2 is a refined version of our original DINPi board. We’ve overhauled the design to make it easier to use. Just like its predecessor, the DINPi V2 is designed to mount a Raspberry Pi or any other pin-compatible SBC (single board computer) onto a DIN rail, using standard DIN rail adapters.

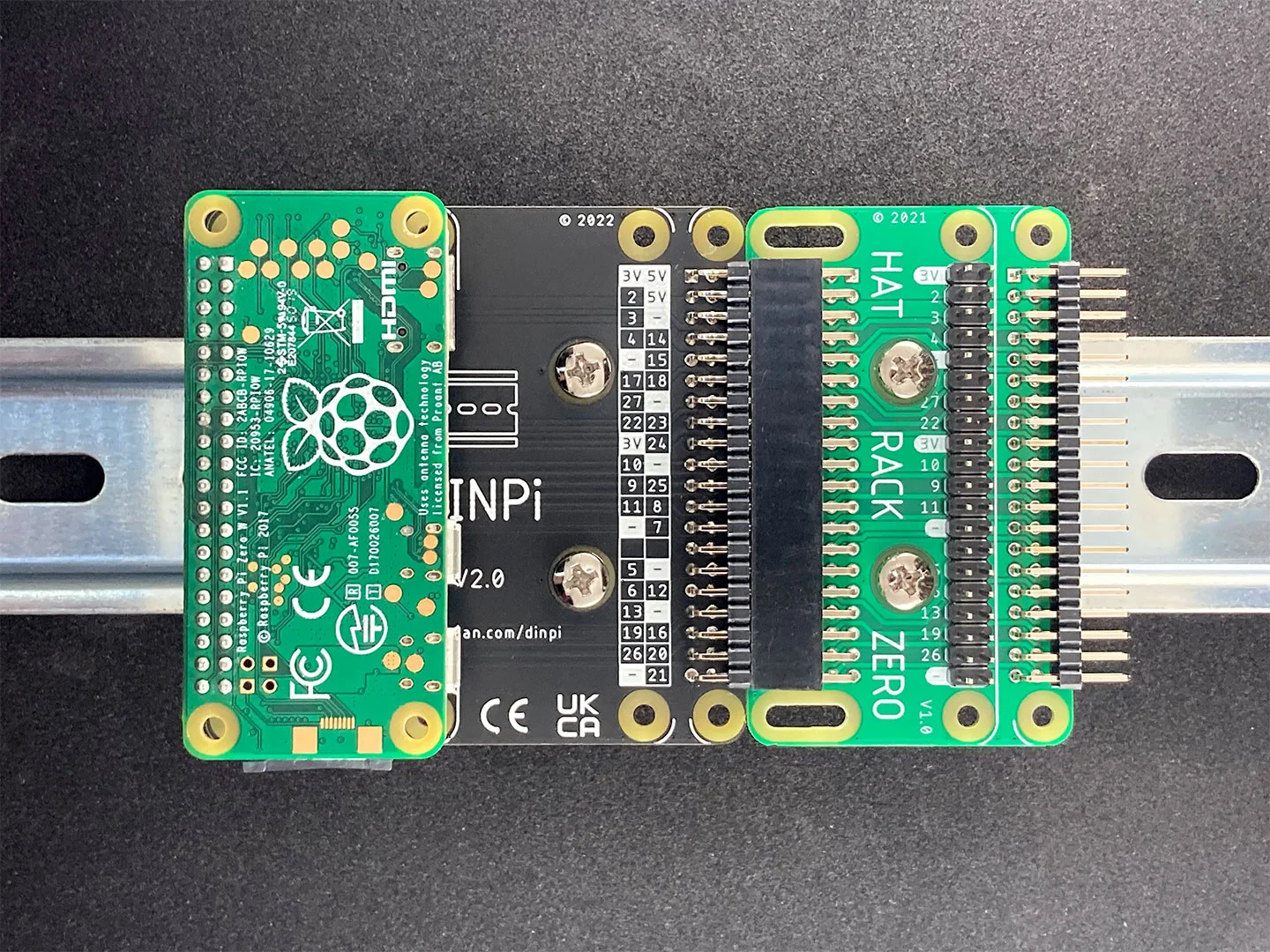

A right-angle header provides a complete breakout for your project with BCM pin numbering printed directly onto the board. It integrates perfectly with our existing HAT RACK boards to create an array of connected HATs.

Manufactured from high quality 1.6mm FR-4 glass fibre material, with a gorgeous satin black finish.

Features

  • DIN rail mountable
  • BCM pin numbering
  • Gold flash plated connectors
  • Works with all pin-compatible SBCs
  • Compatible with our HAT RACK boards

External Powering

The DINPi range of carrier boards can easily be externally powered if required. Some of our HAT RACK boards provide this capability via an auxiliary connector, as do many HATs and Pi accessories.

Alternatively you can simply connect a 5V source to the 5V pin and any ground pin (−) as you would normally. Be sure to use a properly regulated 5V supply to avoid damaging your Pi.

Device Compatibility

The DINPi V2 is fully compatible with all 40-way Raspberry Pi models and clones.

Device ModelCompatibility
Raspberry Pi 1 Model A+/B/B+✔️
Raspberry Pi 2 Model B✔️
Raspberry Pi 3 Model B/B+✔️
Raspberry Pi 4✔️
Raspberry Pi 5✔️
Raspberry Pi Zero✔️
Raspberry Pi Zero 2✔️
ATMegaZero✔️
Asus Tinker Board✔️
Banana Pi✔️
Odroid✔️
Orange Pi✔️
ROCK Pi✔️

Dimensions

Parts List

  • 2×20 pin socket
  • 2×20 pin 90 degree header

Compliance

  • UL 796 certified manufacturer
  • RoHS compliant (lead free)
  • CE & UKCA compliant (certificates)

Gerber Files

Available for download here.

Additional information

Weight21 g
Dimensions65 × 65 × 12 mm
