DINPi Zero

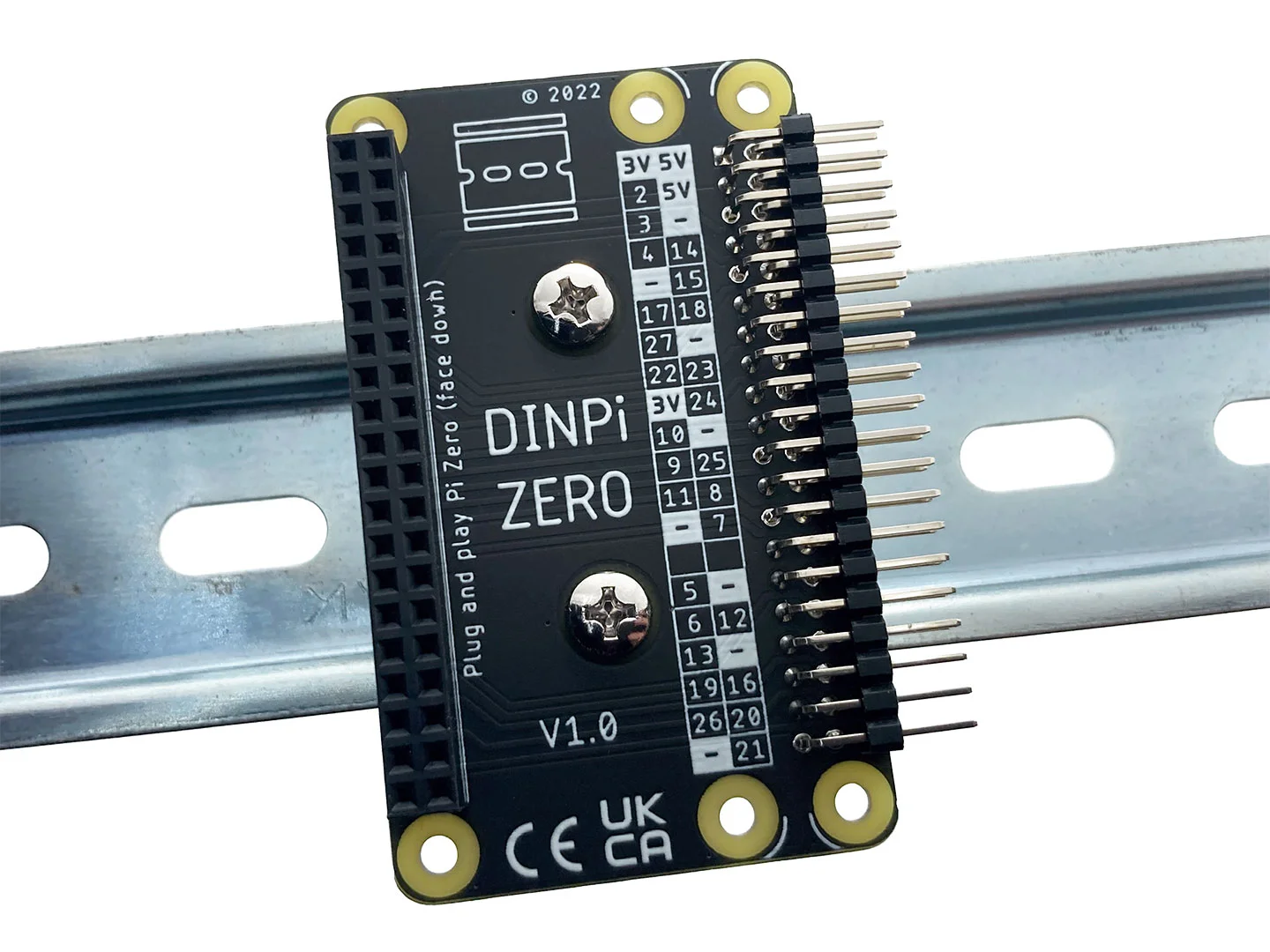

The DINPi Zero is the little brother to our DINPi V2 board, designed to mount a Raspberry Pi Zero or any other Zero sized SBC (single board computer) onto a DIN rail, using a single DIN rail adapter.

A right-angle header provides a complete breakout for your project with BCM pin numbering printed directly onto the board. It integrates perfectly with our existing HAT RACK boards to create an array of connected HATs.

Manufactured from high quality 1.6mm FR-4 glass fibre material, with a gorgeous satin black finish.

Features

• DIN rail mountable
• BCM pin numbering
• Gold flash plated connectors
• Works with all pin-compatible SBCs
• Compatible with our HAT RACK boards

External Powering

The DINPi range of carrier boards can easily be externally powered if required. Some of our HAT RACK boards provide this capability via an auxiliary connector, as do many HATs and Pi accessories.

Alternatively you can simply connect a 5V source to the 5V pin and any ground pin (−) as you would normally. Be sure to use a properly regulated 5V supply to avoid damaging your Pi.

Device Compatibility

The DINPi Zero is fully compatible with all 40-way Raspberry Pi Zero models and clones.

Dimensions

Parts List

• 2×20 pin socket
• 2×20 pin 90 degree header

Compliance

• UL 796 certified manufacturer
• RoHS compliant (lead free)
• CE & UKCA compliant (certificates)

Gerber Files

Available for download here.
