Description

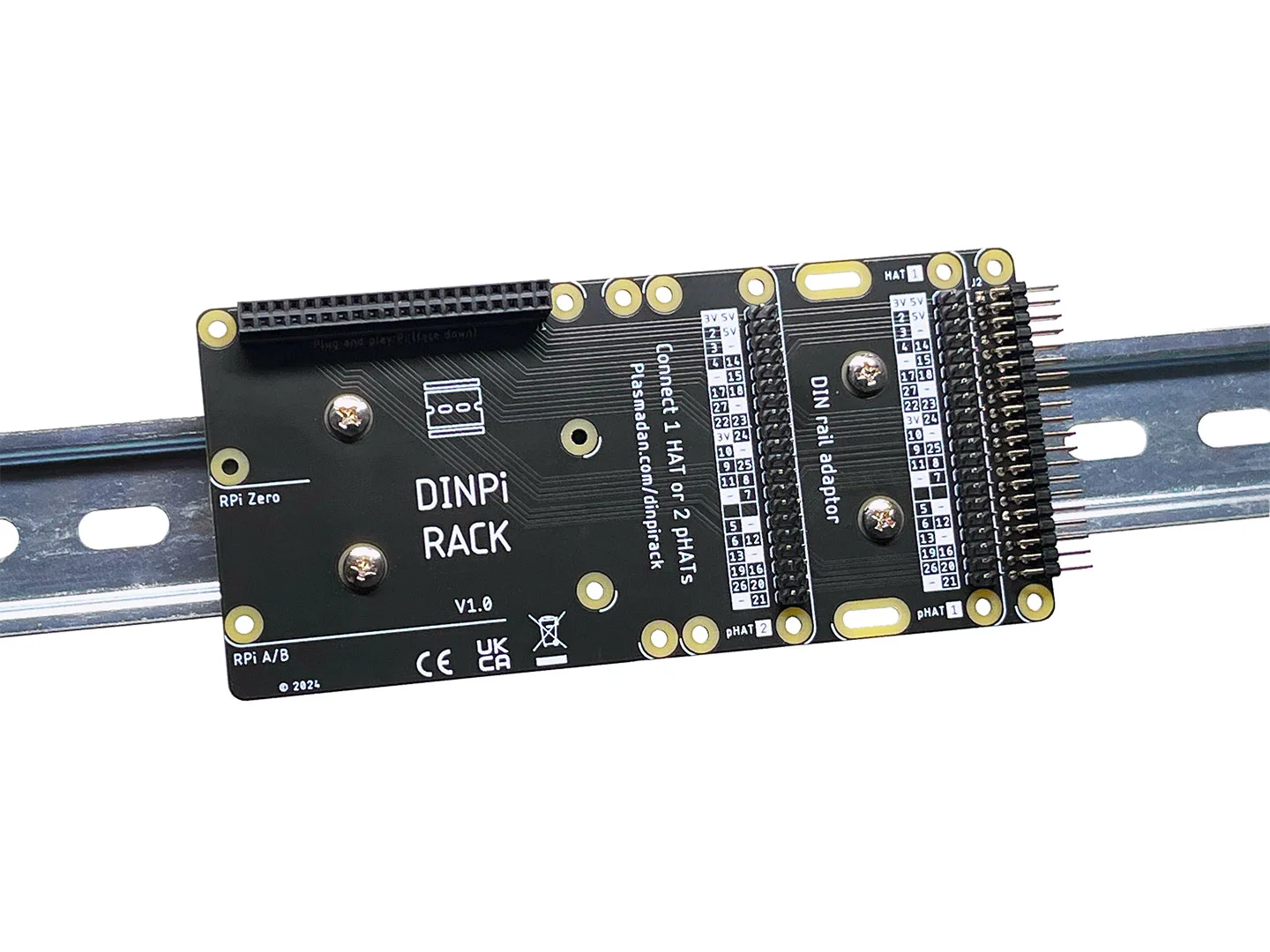

The DINPi RACK carrier board seamlessly combines the features of the DINPi and HAT RACK product ranges, offering a comprehensive solution for your Raspberry Pi projects.
Just like our other DINPi boards, the DINPi RACK is DIN rail mountable. This ensures a secure and professional installation for your Raspberry Pi setup, making it an ideal choice for robotics and home automation applications. A 90-degree orientation for your Raspberry Pi ensures easy access to all I/O ports. It supports either one HAT or two pHAT boards, providing you the freedom to mix and match accessories effortlessly.
Engineered for seamless integration with our HAT RACK boards. This means you have the freedom to create a highly modular and expandable Raspberry Pi setup. Mix and match HATs and pHATs effortlessly, tailoring your setup precisely to your project’s requirements.
Works with Raspberry Pi or any other pin-compatible SBC (single board computer). A right-angle header provides a complete breakout for your project with BCM pin numbering printed directly onto the board.
Manufactured from high quality 1.6mm FR-4 glass fibre material, with a gorgeous satin black finish.
Features

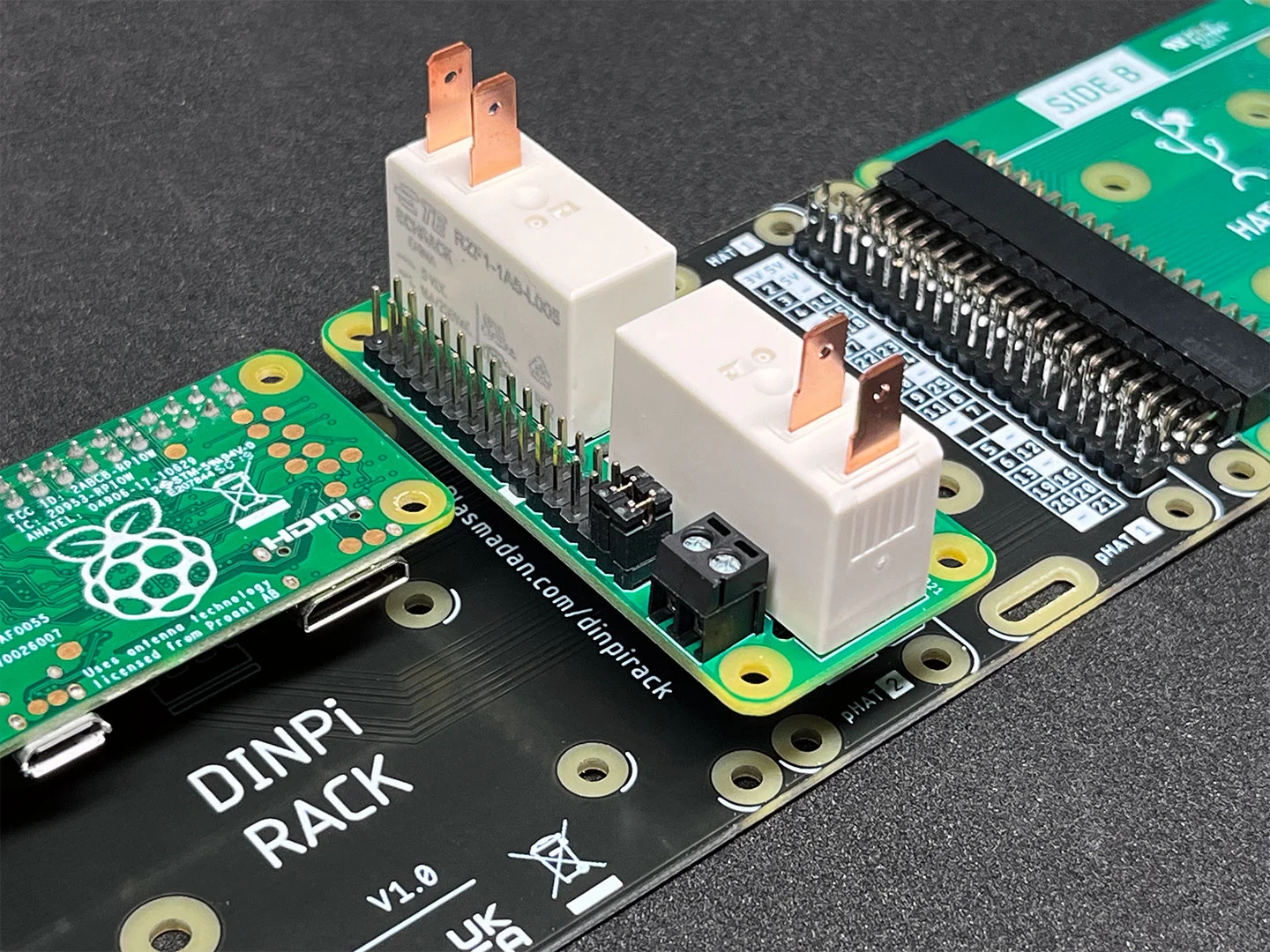

- Connect 1 HAT or 2 pHATs

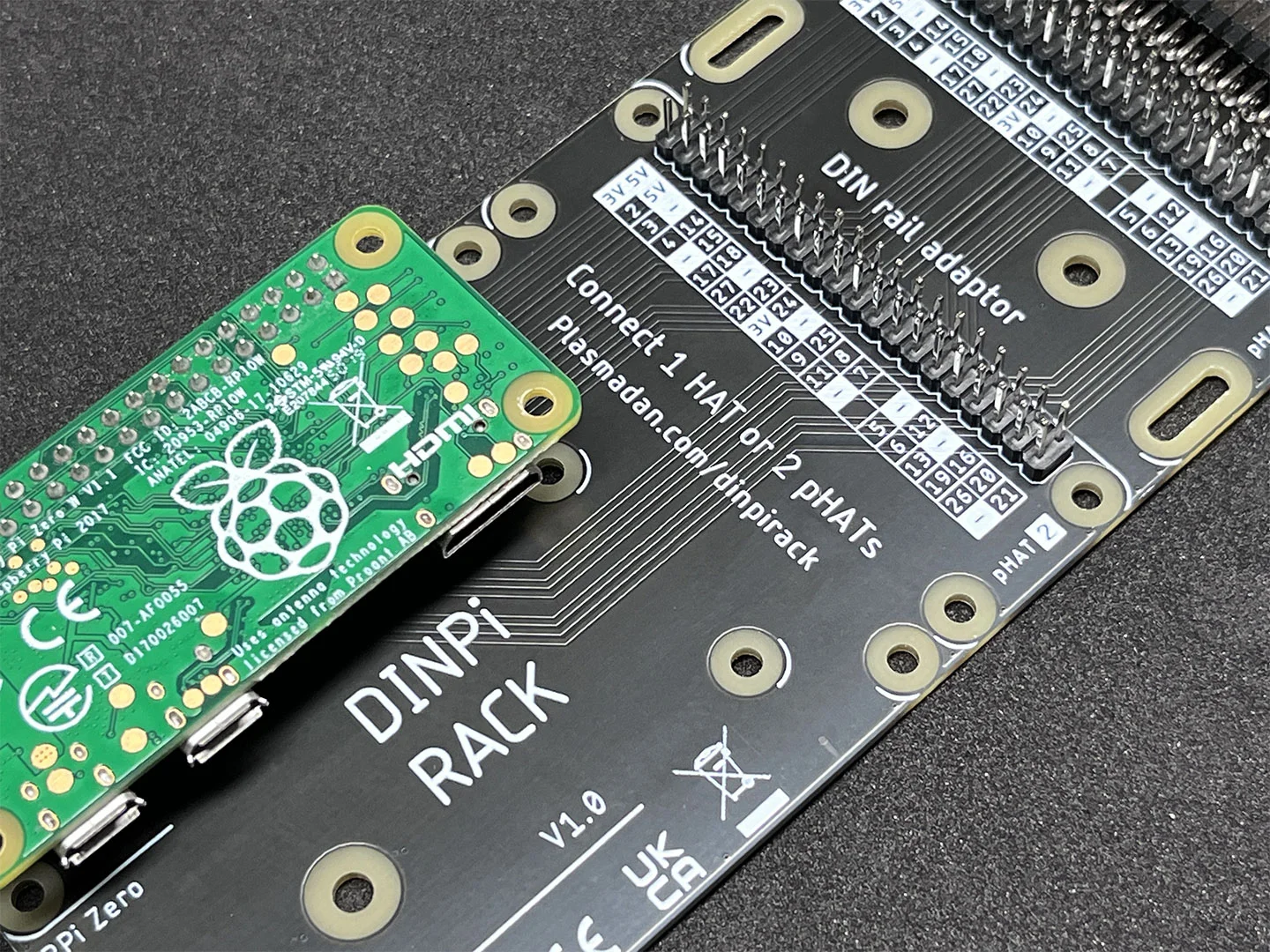

- Plug & play Raspberry Pi or Pi Zero
- Easy access to all Pi I/O ports
- DIN rail mountable
- BCM pin numbering
- Gold flash plated connectors
- Works with all pin-compatible SBCs
- Compatible with our HAT RACK boards
External Powering
The DINPi range of carrier boards can easily be externally powered if required. Some of our HAT RACK boards provide this capability via an auxiliary connector, as do many HATs and Pi accessories.
Alternatively you can simply connect a 5V source to the 5V pin and any ground pin (−) as you would normally. Be sure to use a properly regulated 5V supply to avoid damaging your Pi.
Device Compatibility
The DINPi RACK is fully compatible with all 40-way Raspberry Pi models and clones.
| Device Model | Compatibility |
|---|---|
| Raspberry Pi 1 Model A+/B/B+ | ✔️ |
| Raspberry Pi 2 Model B | ✔️ |
| Raspberry Pi 3 Model B/B+ | ✔️ |
| Raspberry Pi 4 | ✔️ |
| Raspberry Pi 5 | ✔️ |
| Raspberry Pi Zero | ✔️ |
| Raspberry Pi Zero 2 | ✔️ |
| ATMegaZero | ✔️ |
| Asus Tinker Board | ✔️ |
| Banana Pi | ✔️ |
| Odroid | ✔️ |
| Orange Pi | ✔️ |
| ROCK Pi | ✔️ |
Dimensions
Compliance
- UL 796 certified manufacturer
- RoHS compliant (lead free)
- CE & UKCA compliant (certificates)
Gerber Files
Available for download here.
