HAT RACK Zero

1 review

Raspberry Pi Zero pHAT DIN Rail Carrier

£9.00£12.00

Optional Extras
-
+
£2.50
-
+
£0.90
£9.00
£12.00
Parts Included

12 in stock

EAN: SKU: N/A Categories: , Tag:

Description

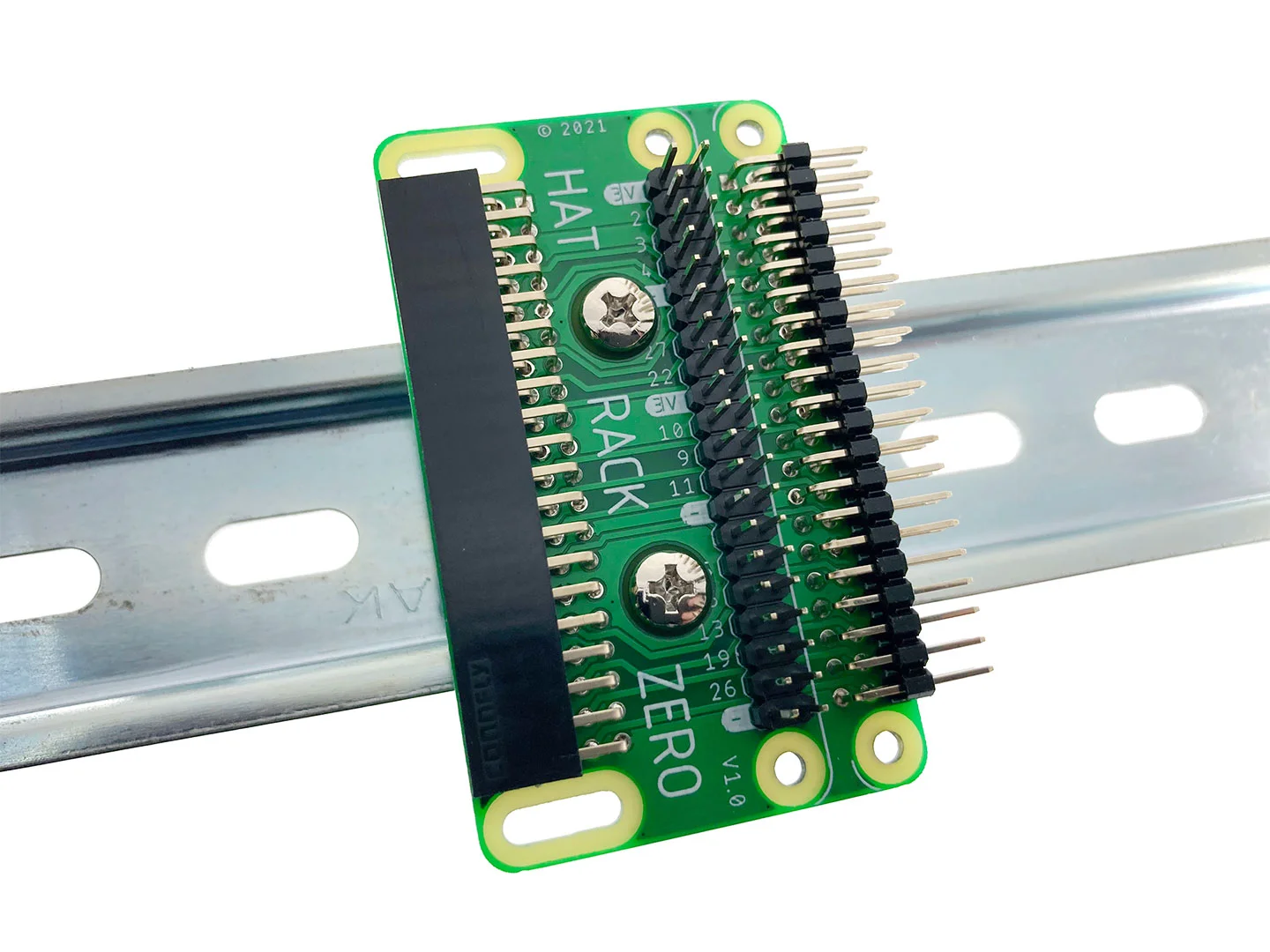

The HAT RACK Zero is a miniature variant of our HAT RACK board designed for use with Raspberry Pi Zero sized add-ons or pHATs (partial HATs). It supports one pHAT, can be mounted to a DIN rail using a standard DIN rail adapter and is backward compatible with other HAT RACK boards. It’s ideal for home automation, Internet of things, or industrial control applications using Raspberry Pi or any other pin-compatible SBC (single board computer).

The right-angle headers and sockets allow multiple boards to be daisy-chained together to create an array of connected HATs and provide multiple connection options for a Raspberry Pi. No ribbon cable is required since the right-angle socket can support a Raspberry Pi directly.

Features

  • Plug & play Raspberry Pi or Pi Zero
  • Daisy chain multiple boards
  • DIN rail mountable
  • BCM pin numbering
  • Gold flash plated connectors

Device Compatibility

The HAT RACK Zero is fully compatible with all 40-way Raspberry Pi models and clones.

Device ModelCompatibility
Raspberry Pi 1 Model A+/B/B+✔️
Raspberry Pi 2 Model B✔️
Raspberry Pi 3 Model B/B+✔️
Raspberry Pi 4✔️
Raspberry Pi 5✔️
Raspberry Pi Zero✔️
Raspberry Pi Zero 2✔️
ATMegaZero✔️
Asus Tinker Board✔️
Banana Pi✔️
Odroid✔️
Orange Pi✔️
ROCK Pi✔️

Dimensions

Compliance

  • UL 796 certified manufacturer
  • RoHS compliant (lead free)
  • CE & UKCA compliant (certificates)

In The Wild

Additional information

Weight25 g
Dimensions39 × 65 × 12 mm
