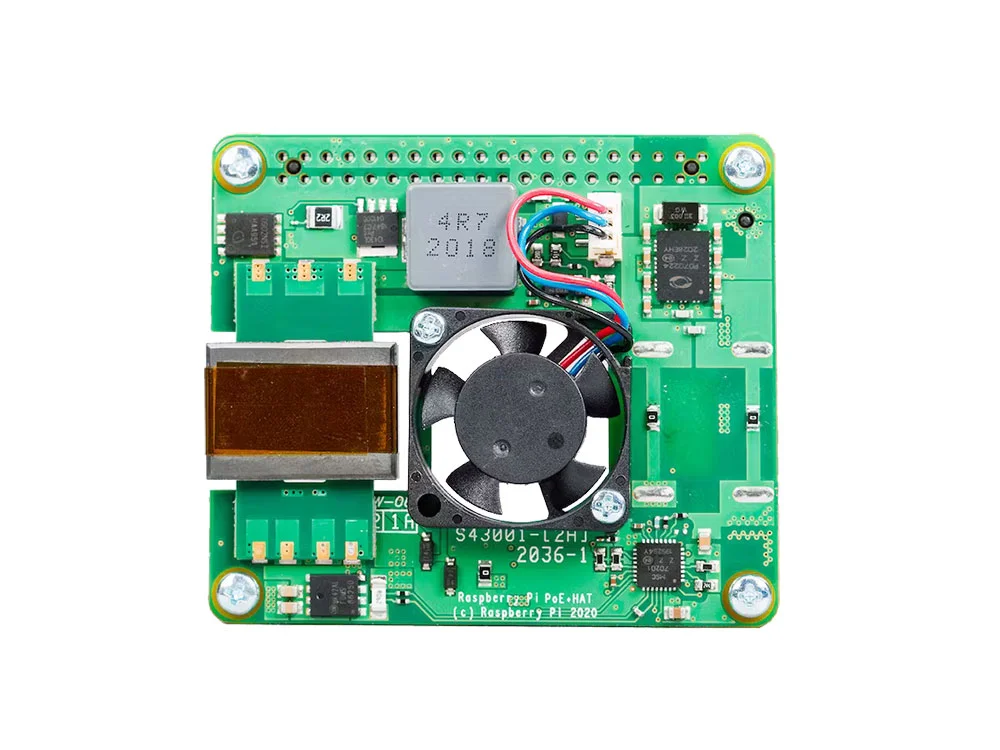

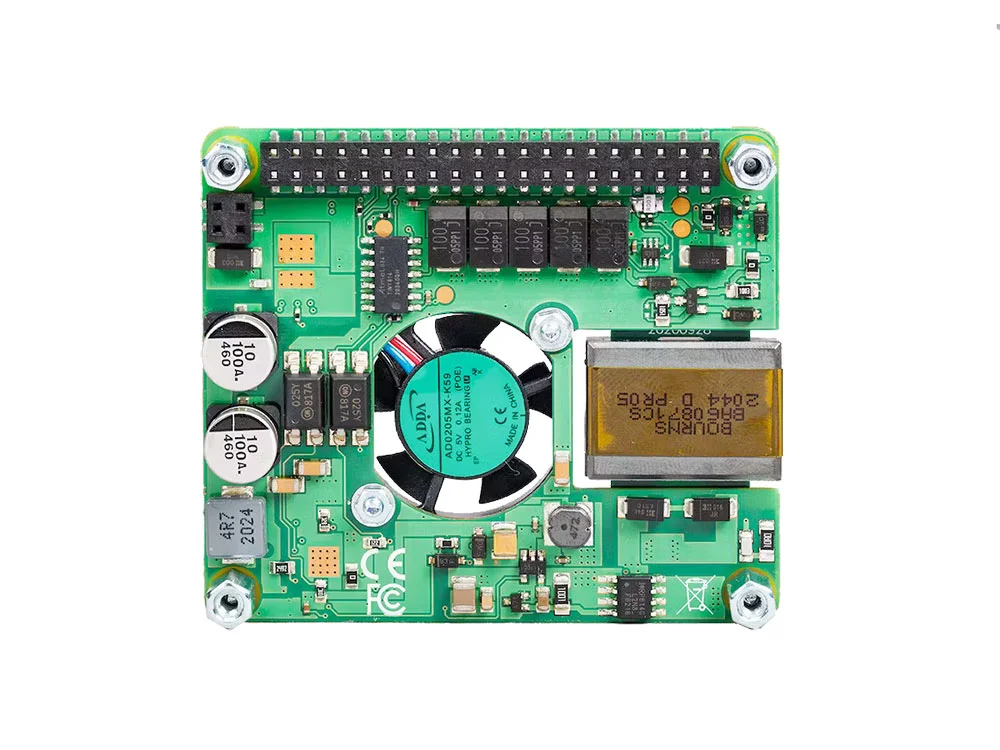

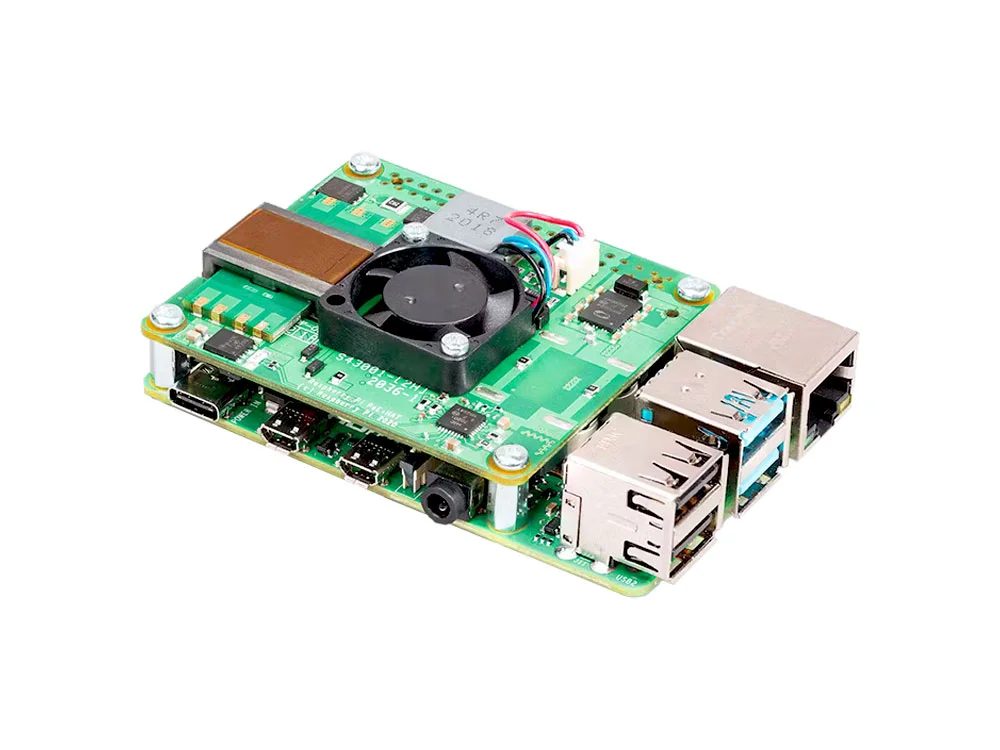

Raspberry Pi PoE+ HAT

The Raspberry Pi PoE+ HAT is an add-on board for Raspberry Pi computers with PoE
pins, including Raspberry Pi 3B+ and Raspberry Pi 4. It is used to power Raspberry Pi via
an Ethernet cable, provided that power-sourcing equipment is installed on the Ethernet
network. The HAT also includes a fan that will cool the Raspberry Pi processor.

Specification

• Standard: IEEE 802.3at-2009 PoE
• Input voltage: 37-57 V DC, Class 4 device
• Output power: 5 V DC/4 A
• Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling
• Features: fully isolated switched-mode power supply; fan control
• Operating temperature: 0 °C to +50 °C
• Production lifetime: The Raspberry Pi PoE+ HAT will remain in production
  until at least January 2027

What’s Included

• 1x Raspberry Pi PoE+ HAT
• 4x 9mm Mounting Spacer Kit

Dimensions

Compliance

Compliance: For a full list of local and regional product approvals, please visit www.raspberrypi.org/compliance

Datasheets

• Raspberry Pi PoE+ HAT product brief
