6A 2-Way Screw Terminal

2 Ways, 3.5mm Pitch

£0.75

25 in stock

EAN: 0637609902789 SKU: MA212-350M Category:

Description

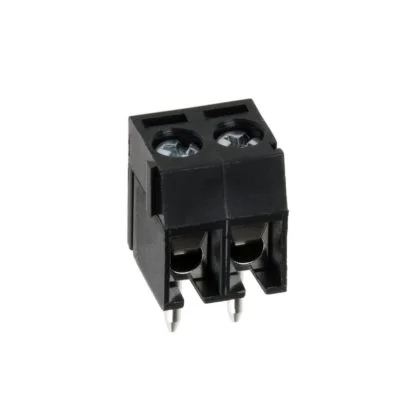

This 3.5mm pitch, 6A / 300V rated 2 way vertical screw terminal block is perfect for high density applications, with a board height of only 8.2mm. It’s suitable for wire size up to 1.5mm² / 16AWG and has a modular design allowing combination with other modular terminal blocks.

Specifications

  • Pitch: 3.5mm
  • Contact Material: Tin-plated Brass
  • Housing Material: Polyamide66
  • Rated Current: 6A
  • Max voltage: 300V AC
  • Operating Temperature: -40°C to +105°C

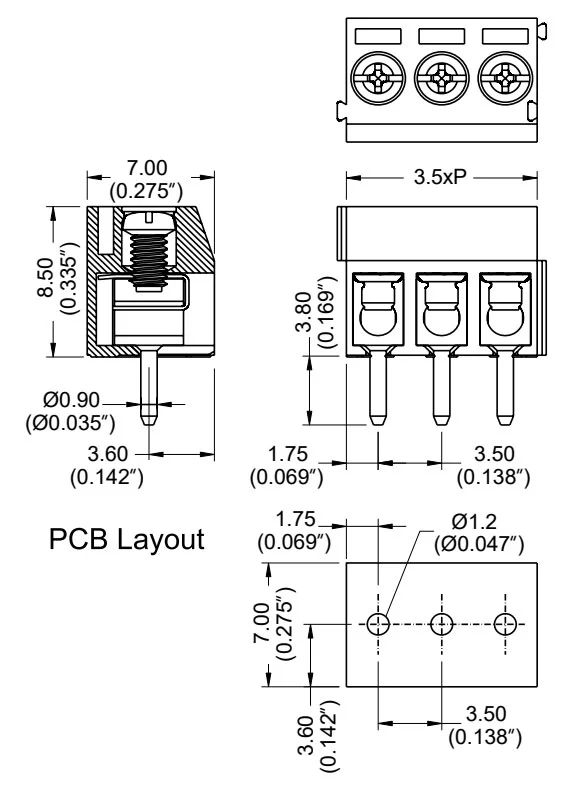

Dimensions

Compliance

  • UL recognised
  • RoHS compliant (lead free)

Additional information

Weight3 g
