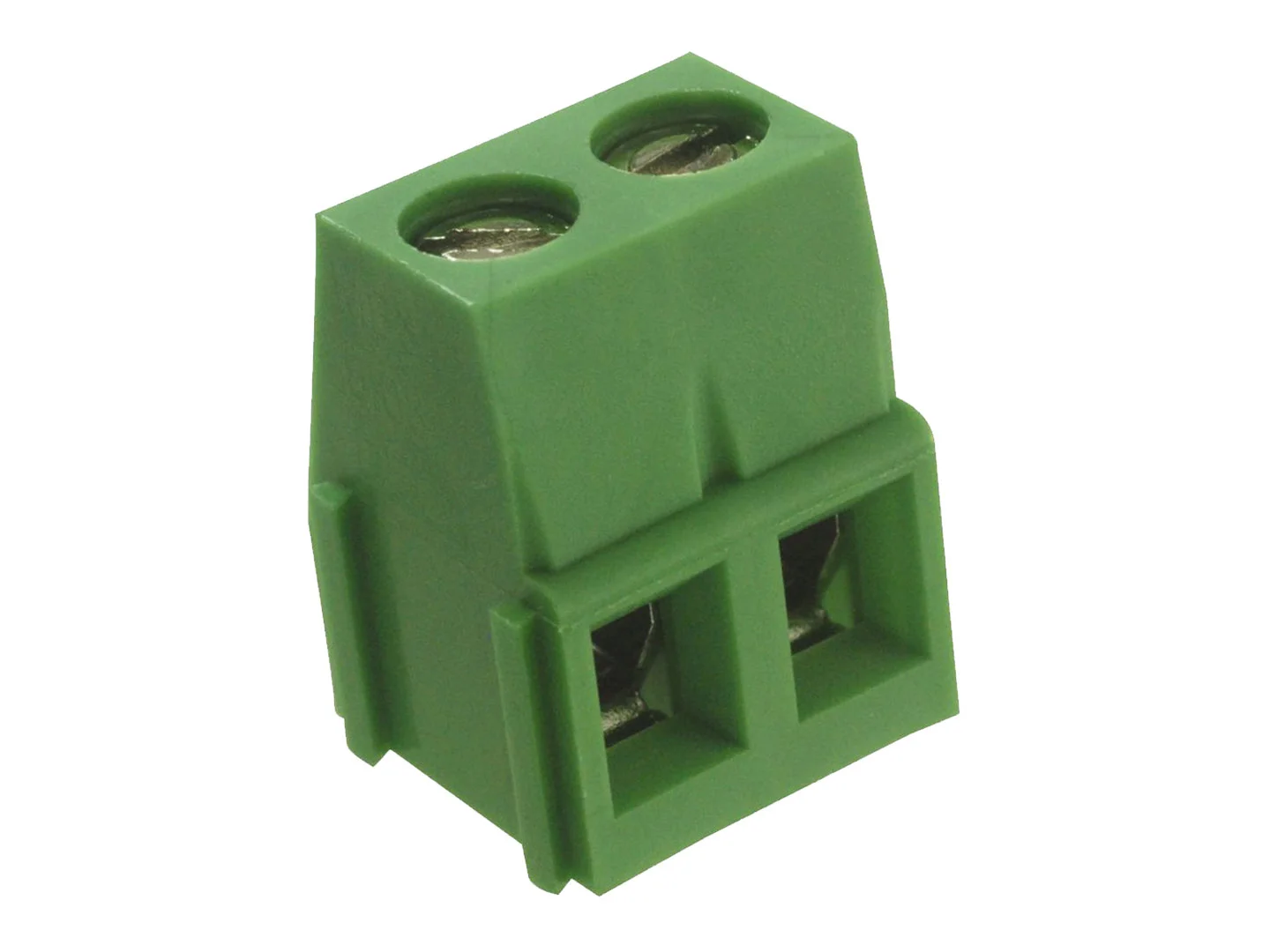

16A 2-Way Screw Terminal

2 Ways, 5.08mm Pitch

£0.75

38 in stock

EAN: 0786468656880 SKU: SCREW-508-2 Category:

Description

This 5.08mm pitch, 16A / 300V rated 2 way vertical screw terminal block is perfect for high power applications. It’s suitable for wire size up to 4mm² / 12AWG and has a modular design allowing combination with other modular terminal blocks.

Specifications

  • Pitch: 5.08mm (0.2″)
  • Contact Material: Tin-plated Brass
  • Housing Material: Polyamide66
  • Rated Current: 16A
  • Max voltage: 300V AC
  • Operating Temperature: -40°C to +105°C

Dimensions

Compliance

  • UL recognised
  • RoHS compliant (lead free)

Additional information

Weight3 g
