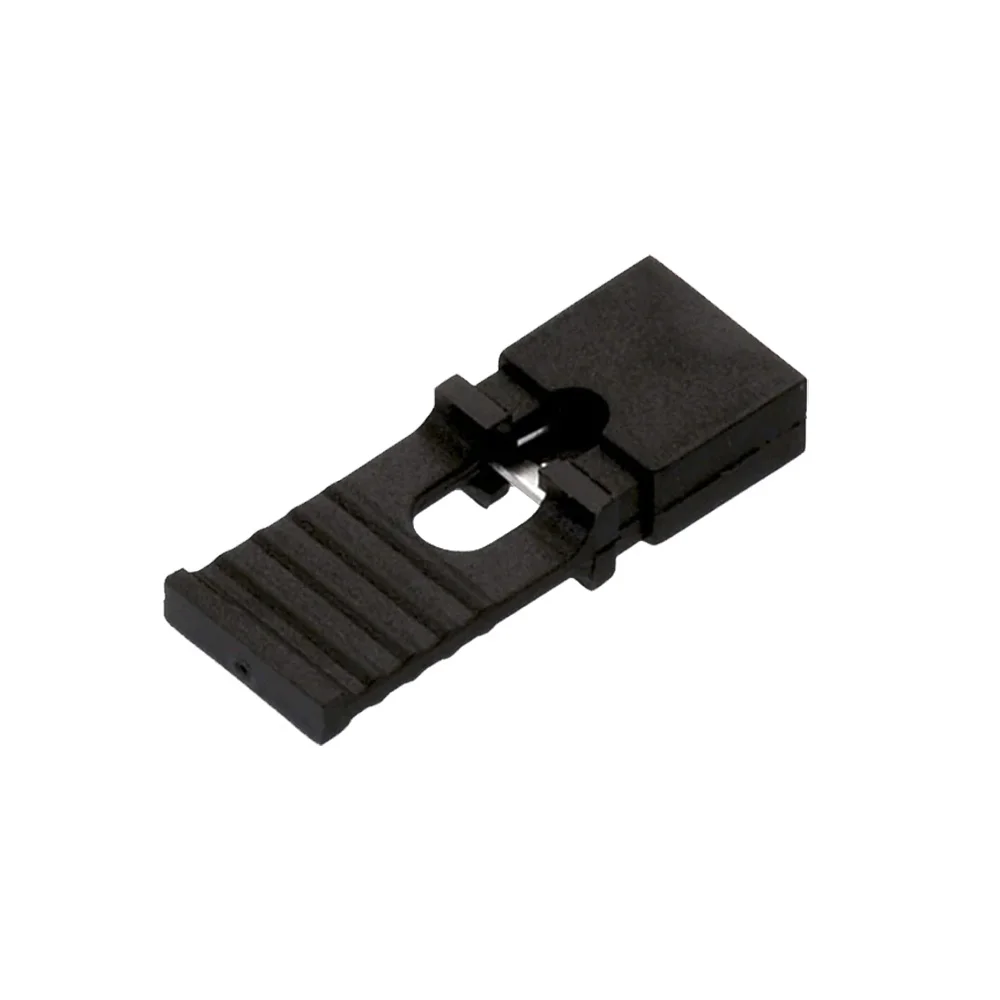

Handled Jumper Link

This 0.1″ / 2.54mm pitch female jumper link socket or shunt is perfect for on-board programming such as I2C address selection when placed on a double row pin header.

The housing incorporates a handle which enables easy placement and removal, even in the tightest of spaces. The footprint is small enough to enable them to be stacked side by side and they offer a high reliability multi-usage of up to 300 operations.

Specifications

• Contact Material: Brass
• Contact Plating: Gold Flash Plated
• Rated Current: 3A
• Max voltage: 500V AC
• Insulation Resistance: 5000 MΩ Max.
• Operating Temperature: -40°C to +105°C

Dimensions

Compliance

• RoHS compliant (lead free)
