Description

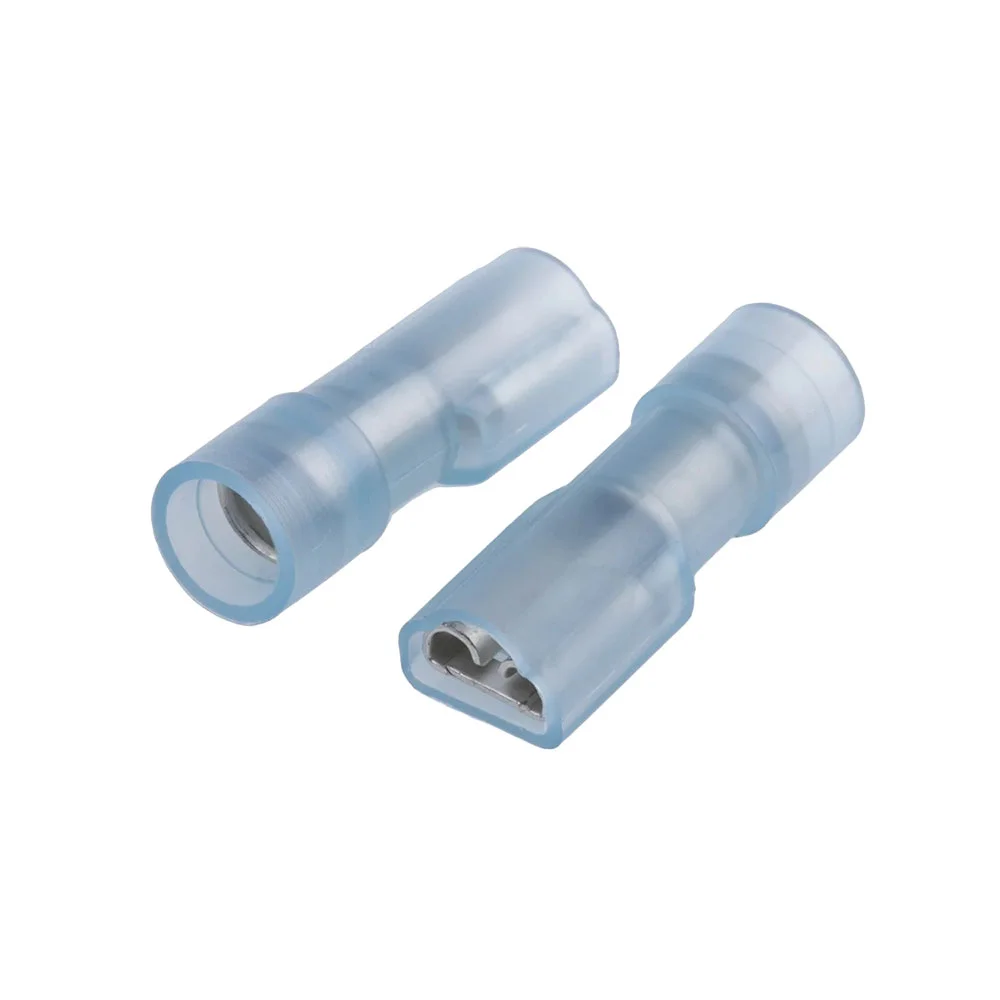

High-quality fully insulated crimp receptacle terminal sometimes known as a female quick disconnect.
The connector is crimped onto the end of a stranded electrical wire using a crimping tool, no solder is required.
Features
- Quick and easy connection and disconnection
- Fully insulated for protection against electrical shock and shorts
- Double crimp design with an internal copper sleeve for added strength and robust crimp joint
- Tin plating for resistance to corrosion, added strength and excellent conductivity
- Colour coded insulation for easy identification of terminal size
- Funnelled insulation design allows easy wire insertion
Specifications
- Tab size: 4.75 x 0.5mm
- Cable size: 1.5mm² to 2.5mm² (16 to 14 AWG)
- Max current: 15A
- Max voltage: 300V
